Authorized UNS N06022 Bolt and Nuts Manufacturer in India
| Ready Stock: | M3 To M80 |
|---|---|
| Custom Sizes: | Up to 4″ |
| Length: | 3mm to 200mm |
| International Standard: | ASME B18 2.2 and ASME B18 2.1, DIN 970, DIN 933, DIN 931 |
| European and American Standard: | ASTM: B574, ASME : SB 574, UNS: N06022, WNR: 2.4602 |
| Raw Material Origin: | SA, Europe, New Zealand, Algeria, United Kingdom, Morocco, South Africa, New Zealand, Australia India etc |
| MTC: | EN 10204/3.1B |
| Suitable Environment: | Salt Water and Mild Acids |
| Thread Pitch: | Fine Thread and Coarse Thread |
| Finish: | HDG, Oxidation, Phosphating |
| Threads: | UNJ, UNC, UNF, Rolled, UNR |
| Temperature Range: | 1121°C – 2050°F |
| To Know About Latest Price List of Hastelloy C22 Fasteners Please Contact Us | |
Alloy C22 Nuts
NW 6022 Cap Nut
UNS 6022 U Bolt
Visionalloys is the giant manufacturer of Hastelloy C22 Fasteners. We export all kinds of fasteners and their respective grades as well. ASTM B574 UNS N06022 is the trading name of this fastener which consists of a great amount of chromium element which restricts oxide mediation by its resistance during exposure. For occurrence, the conditions possessing a combination of chlorine ions or oxidizing elements like nitric acids or elements such as wet chlorine which is also oxidizing media (aqueous), the UNS N06022 Bolts provides high resistance to corrosion
Alloy C22 Fasteners are also famous for their intelligence offered during seawater processing along with brine as well as inorganic acids and organic acids where resistance plays a vital role. Based on these properties it can be drawn that these fasteners are suitable for use in applications such as seawater or marine instruments. Element tungsten and element molybdenum are great for supporting Hastelloy C22 Nuts as they provide resistive ability in reducing media.
Table of Content
- Hastelloy C22 Fasteners Specification
- ASTM B574 UNS N06022 Screw Size
- Price List of Alloy C22 Bolts
- Hastelloy C22 Chemical Composition
- UNS 6022 Hex Bolt Mechanical Properties
- Hastelloy C22 Nuts Chemical Compatibility
- Types of Nickel Alloy C22 Fasteners
- DIN 2.4602 Screws Equivalent Properties
- Haynes Alloy c22 Heavy Hex Bolt Physical Properties
- NW 6022 Stud Bolt Torque Chart
- Alloy C22 Fasteners HS Code
- WNR 2.4602 Hex Nuts Thermal Properties
- Nickel Alloy C22 Nuts and Bolt Load Capacity
Nickel is a good element for adding some great properties in many fasteners, however, when added to Hastelloy C22 Bolts offer the best optimal resistance in-stream process corrosion having reducing agents and oxidizing chemicals. When it comes to multi-chemicals environments this Hastelloy is highly recommended by experts due to its amazing attributes offers at different levels.
Hastelloy C22 Screws special element nickel becomes the leading chemical for serving resistance, in zone impacted by weld heat, to grain boundary precipitation. The ductile property becomes one of the most favorable attributes for various usage, besides the weldability of these C22 Fasteners. The formation into various grades is easy due to its excellent ductile ability, such as nuts, bolts, and screws as well as many more.
Find Hastelloy C22 Bolts Manufacturer in India Who Provides Technical Specification
- M1.2 – M48
- 3 to 200 mm
- M6 to M80
- Fine
- Coarse
- Cold Forging
- CNC Machined
- Hot Forging
- A
- D
- C
- G
- B
- E
- 1446 °C (2635 °F)
- ASME SB 574
- ASTM B574
- Nicrofer® 5621
- Hastelloy C22®
- Inconel® 22
- Plain
- DACROMET
- Phosphating
- Zinc impregnation
- Oxidation
- Electric galvanized
- CNC Lath
- Thread Rolling
- Making Machines
- 100% Tested Hastelloy C22 Fasteners with MTC EN 10204 3.1/3.2
- UN8
- BSW
- ACME
- UNF
- UNR
- UNM
- BSF
- UTS
- UNC
- bolt
- nuts
- screws
- washers
- stud bolt
- threaded rod
- hex bolt
- Head Shank Drilling
- Thread Locking
- Head Painting
- Bagging
- Oval
- Pan
- Cross
- Truss
- Torx
- Round
- Hex
- Hexagon washer
- Flat
- Phillips Drive
- Socket cap head
- Button head
- Slotted Drive
- Slotted hex washer
- Hex washer head
- Pan
- Hex head
- Oval
- Frearson Drive
- Combination Drive
- Truss
- Class 2A (Medium fit)
- 2G
- 5 ONF
- 3G
- 4G
- custom
- 5 CSF
- Class 1A (Loose fit)
- 6G
- Class 3A (Tight fit)
- 5 HF
- 8G
Supplier of Alloy C22 Hex Bolt and Screws in Different Sizes as Per ISO 4014 Standards
Vision Alloys is Hastelloy C22 Fasteners Manufacturer in India, Offers UNS N06022 Hex Bolt, Cap Screws, Studs and Threaded Rod in Different Sizes to The UK, Europe, Morocco, Australia and USA at Low Cost
| Thread dia | ||||||
|---|---|---|---|---|---|---|
| Size | #1 | #0 | #2 | #4 | #3 | #5 |
| Nearest Fraction | 5/64 | 1/16 | 5/32 | 7/64 | 7/64 | 01/8 |
| Inch | 0.07 | 0.06 | 0.08 | 0.11 | 0.09 | 0.12 |
| Millimeter | 1.8 | 1.5 | 2 | 2.8 | 2.3 | 3.1 |
| Size | #8 | #6 | #10 | #14 | #12 | |
| Nearest Fraction | 5/32 | 9/64 | 5/16 | 01/4 | 7/32 | |
| Inch | 0.16 | 0.13 | 0.19 | 0.24 | 0.21 | |
| Millimeter | 4.2 | 3.3 | 4.8 | 6.3 | 5.5 | |
Exporter of DIN 2.4602 Studs and Threaded Rod with UNEF, UNC and BSF Threads at Factory Price in Mumbai
Are You Trying to Find the Greatest Deal for Hastelloy C22 Bolts? Contact Us
Check ASTM B574 UNS N06022 Socket Cap Screw Material Properties Before Buying the Products
Find Hastelloy C22 Fasteners Supplier in India offering high-performance goods with exceptional Chemical analysis.
| Grade | Si | Fe | P | C | Mo | Mn | S | Co | Cr | W | V | Ni |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C22 | 0.08 | 2.00 – 6.00 | 0.02 | 0.010 | 12.5 – 14.5 | 0.50 | 0.02 | 2.5 | 20 – 22.5 | 2.5 – 3.5 | 0.35 | Bal |
Check Hastelloy C22 Bolts Supplier in India Who Offer High Tensile Strength.
| Element | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
|---|---|---|---|
| Value | Psi – 45000 , MPa – 310 | Psi – 1,00,000 , MPa – 690 | 45% |
- Phosphoric Acid
- Nitric Acid
- Sulfuric Acid
- Hydrochloric Acid
Vision Alloys is Hastelloy C276 Fasteners Supplier in India, Buy Alloy C22 Bolts and Nuts in Various Thread Types Like UNC, UNF, BSW and BSF etc
DIN 2.4602 Studs
Haynes Alloy c22 Heavy Hex Bolt
WNR 2.4602 Hex Nuts
UNS 6022 Socket Head Cap Screw

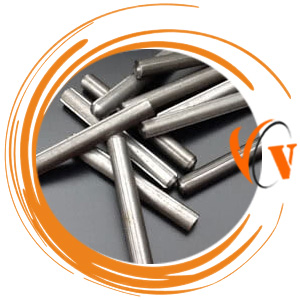

DIN 2.4602 Dowel Pin
ASTM B574 UNS N06022 Threaded Rod
NW 6022 Washers
Alloy C22 Set Screws
WNR 2.4602 Flat Washer
Refer Haynes Alloy C22 Heavy Hex Bolt Equivalent and Physical Properties
| Standards | UNS | WNR | ASME | ASTM | BS | JIS | GOST |
|---|---|---|---|---|---|---|---|
| Country | North America | Russia | Australia | America | United Kingdom | Japan | Russia |
| Standards | N06022 | 2.4602 | SB 574 | B574 | – | NW 6022 | – |
| Country | AFNOR | EN | ANSI | AMS | AS | SAE | DIN |
| Standards | France | Europe | America | United States | Australia | United States | German |
| Country | – | NiCr21Mo14W | – | – | – | – | 2.4602 |
Vision Alloys is Hastelloy C276 Fasteners Manufacturer in India, Offers ASTM B574 UNS N06022 Studs and Threaded Rod in Various Surface Finishes at Reasonable Price in Mumbai
| Element | Value | |
|---|---|---|
| Melting Point | °C | 1399 |
| °F | 2550 | |
| Density | g/cm3 | 8.69 |
| Dia (in) | 9/16″ | 1/4″ | 3/8″ | 5/16″ | 7/16″ | 1/2″ | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Threads/in | 12 | 18 | 20 | 28 | 16 | 24 | 18 | 24 | 14 | 20 | 13 | 20 |
| Torque ft-lb (Dry) | 57.9 | 64.6 | 4.5 | 5.2 | 16.5 | 18.6 | 9.3 | 10.3 | 26.3 | 29.4 | 40.2 | 45.3 |
| Torque ft-lb (Lubricated) | 43.5 | 48.5 | 3.4 | 3.8 | 12.4 | 14 | 7 | 7.7 | 19.8 | 22.1 | 30.1 | 33.9 |
| Dia (in) | 1-1/2″ | 5/8″ | 7/8″ | 3/4″ | 1″ | 1-1/4″ | ||||||
| Threads/in | 6 | 12 | 11 | 18 | 9 | 14 | 10 | 16 | 8 | 14 | 7 | 12 |
| Torque ft-lb (Dry) | 1039 | 1169 | 79.9 | 90.5 | 228 | 252 | 142 | 158 | 343 | 385 | 597 | 661 |
| Torque ft-lb (Lubricated) | 779 | 876 | 60 | 67.9 | 172 | 189 | 107 | 119 | 257 | 289 | 447 | 495 |
| Grade | Haynes Alloy C22 |
|---|---|
| HS Code | 75089090 |
| Thermal Properties | Thermal Conductivity | Thermal Diffusivity | Mean Coefficient of Thermal Expansion | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Imperial | RT | 200°F | 400°F | 600°F | RT | 200°F | 400°F | 600°F | 75-200°F | 75-400°F | 75-600°F | 75-800°F | 75-1000°F | 75-1200°F |
| 69 btu.in/h.ft2.°F | 76 btu.in/h.ft2.°F | 94 btu.in/h.ft2.°F | 110 btu.in/h.ft2.°F | 0.004 in2/s | 0.005 in2/s | 0.005 in2/s | 0.006 in2/s | 6.9 μin/in. °F | 6.9 μin/in. °F | 7.0 μin/in. °F | 7.4 μin/in. °F | 7.7 μin/in. °F | 8.1 μin/in. °F | |
| Metric | RT | 100°C | 200°C | 300°C | RT | 100°C | 200°C | 300°C | 24-100°C | 24-200°C | 24-300°C | 24-400°C | 24-500°C | 24-600°C |
| 10.1 W/m.°C | 11.1 W/m.°C | 13.4 W/m.°C | 15.5 W/m.°C | 0.027 cm2/s | 0.030 cm2/s | 0.035 cm2/s | 0.039 cm2/s | 12.4 μm/m.°C | 12.4 μm/m.°C | 12.6 μm/m.°C | 13.1 μm/m.°C | 13.7 μm/m.°C | 14.3 μm/m.°C | |
| Thermal Properties | Specific Heat | Dynamic Modulus of Elasticity | ||||||||||||
| Imperial | 100°F | 200°F | 400°F | 600°F | 800°F | RT | 200°F | 400°F | 600°F | 800°F | 1000°F | 1200°F | ||
| 0.098 Btu/lb.°F | 0.101 Btu/lb.°F | 0.106 Btu/lb.°F | 0.111 Btu/lb.°F | 0.114 Btu/lb.°F | 29.9 x 106 psi | 29.4 x 106 psi | 28.5 x 106 psi | 27.6 x 106 psi | 26.6 x 106 psi | 25.7 x 106 psi | 24.8 x 106 psi | |||
| Metric | 50°C | 100°C | 200°C | 300°C | 400°C | RT | 200°C | 300°C | 400°C | 500°C | 600°C | 700°C | ||
| 414 J/kg.°C | 423 J/kg.°C | 444 J/kg.°C | 460 J/kg.°C | 476 J/kg.°C | 206 GPa | 197 GPa | 191 GPa | 185 GPa | 179 GPa | 174 GPa | 168 GPa | |||
| Size | M6 | M5 | M8 | M12 | M10 | M16 | M24 | M20 | M30 |
|---|---|---|---|---|---|---|---|---|---|
| Bolts in kg | 1,16 | 82 | 2,12 | 4,89 | 3,37 | 9,10 | 21,20 | 14,70 | 33,70 |
| Nuts in kg | 1,67 | 1,18 | 3,04 | 7,00 | 4,81 | 13,00 | 29,30 | 20,30 | 46,60 |
| UAE | Australia | Qatar | Saudi Arabia | Turkey |
| Italy | Germany | Denmark | Ireland | Brazil |
| Canada | USA | Spain | UK | South Africa |
| Nigeria | Poland | Mexico | Netherlands | Singapore |
