Most Trusted SS 304L Socket Cap Screw Manufacturer in India
Stainless Steel Socket Head Cap Screw Snapshot
| Ready Stock: | M10 – M110 |
|---|---|
| Custom Sizes: | Yes |
| Length: | 12 – 1200MM |
| International Standard: | DIN 912, ISO 4762 |
| European and American Standard: | ASTM F837, ASME SF837 |
| Raw Material Origin: | Morocco, South Africa, SA, Europe, New Zealand, Algeria, United Kingdom, New Zealand, Australia India etc |
| MTC: | EN 10204 3.1 and 3.2 |
| Suitable Environment: | High Temperature |
| Thread Pitch: | Fine Thread, Coarse Thread |
| Finish: | Plain, Polished, Black |
| Threads: | UNC, UNJ, Rolled, UNF, UNR |
| Temperature Range: | -184°C to 427°C |
| To Know About Latest Price List of Stainless Steel Socket Head Cap Screw Please Contact Us | |
Stainless Steel Socket Screw
SS Socket Low Head Cap Screw

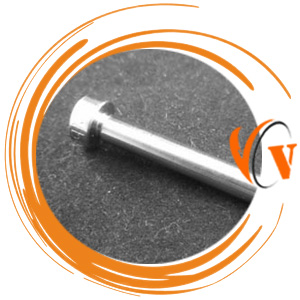

316 Socket Head Shoulder Screw
Table of Content
- SS Socket Cap Screws Specification
- Stainless Steel Socket Head Cap Screw Torque Chart
- SS 304L Socket Cap Screw Size Range
- Price List of Stainless Steel SHCS
- Stainless Steel Socket Head Cap Screw Tensile Strength
- SS Alloys Socket Low Head Cap Screws Equivalent Properties
- Ready Stock
- Stainless Steel 316 Socket Head Cap Screw Dimension
- Austenitic Steel Socket Head Shoulder Screw Chemical Composition
- SS 304L Socket Head Cap Screw Delivery Time Table
Visionalloys have many years of experience in exporting & manufacturing of Socket Head Cap Screws. in india & worldwide industry. We export Socket Head Cap Screws in more than 70 countries. Top quality of Socket Head Cap Screws are offered in a broad variety of colors, sizes and materials. We are manufacturer, Supplier and Exporter of all type of ASTM A307 Socket Head Cap Screw,DIN 939 Socket Head Cap Screw,ASTM A354 Socket Head Cap Screw,DIN 582 Socket Head Cap Screw,ASTM A320 Socket Head Cap Screw, Cap Screws from India. Visionalloys ensures fast delivery of material as soon as possible .Products are manufactured according to the customers’ needs.
Stainless Steel Socket Head Cap Screw Size
- M10 – M110
SS 304L Socket Cap Screws Length
- 12 – 1200mm
Stainless Steel 316 SHCS Temperature
- 550°C to 800°C
SS Socket Low Head Cap Screw Threads
- BSF
- UN8
- UNF
- UNR
- Metric fine
- UNC
Stainless SHCS Manufacturing process
- Material Selection
- Cold Forming
- Thread Cutting /Rolling
- Heat Treatment
- Finishing
304 Socket Head Shoulder Screw Applications
- Construction Industry
- Automotive Industry
- Energy Industry
- Aerospace Industry
- Oil and Gas
- Manufacturing Industry
316 Fully Threaded Socket Cap Screws ISO Standards
- ISO 4762
- ISO 10642
- ISO 7379
SS Flat Socket Head Cap Screw BS Standards
- BS 6105 a4-80
- BS 6105 a2-50
- BS 6105 a2-70
- BS 6105 a4-70
Stainless Steel Socket Head Cap Screw Packaging
- Carton
- Pallet
- Small Box
- Plastic
Stainless Steel 316 SHCS Supplier in Size Ranging From M2 to M42, Also Refer Torque Chart
| Nominal Size | Body Section | Tightening Torque (in. – lbs.) | Tensile Strength (lbs., min) | Yield Strength (lbs., min) | |||
|---|---|---|---|---|---|---|---|
| Single Shear Strength (lbs., min.) | UNRC | UNRF | UNRF | UNRF | |||
| 0 | 130 | – | 1.4 | – | 145 | – | 72 |
| 1/2 | 8,840 | 750 | – | 11,350 | – | 5,675 | – |
| 1 | 190 | – | 2.3 | – | 220 | – | 111 |
| 2 | 260 | 3.8 | – | 295 | – | 185 | – |
| 3/8 | 4,970 | 301 | 341 | 6,100 | 7,025 | 3,100 | 3,510 |
| 3 | – | – | – | – | – | – | – |
| 4 | 350 | 6 | – | 480 | – | 240 | – |
| 5 | – | – | – | – | – | – | – |
| 6 | 375 | 15 | – | 725 | – | 363 | – |
| 5/16 | 3,450 | 170 | 188 | 4,200 | 4,645 | 2,100 | 2,230 |
| 8 | 670 | 28 | – | 1,120 | – | 560 | – |
| 10 | 950 | 40 | 46 | 1,400 | 1,600 | 701 | 800 |
| 1/4 | 2,200 | 95 | 109 | 2,550 | 2,910 | 1,273 | 1,455 |
| 7/16 | – | – | – | – | – | – | – |
| Size Range | |||
|---|---|---|---|
| Diameter | Length | ||
| Inch | Metric | Inch | Metric |
| 5/16“ to 2″ | M8 to M42 | 7/8″ to 12″ | 20 mm to 300 mm |
| Stainless Steel Socket Head Cap Screw Manufacturer in India, Buy SS Socket Screws in Above Sizes at Factory Prices in Mumbai | |||
| Nominal SS SHCS Size | 7/8 thru 1-1/2 | 0 thru 3/8 | 7/16 thru 3/4 | |
|---|---|---|---|---|
| Nominal Length | Over 4″ – 6″ | -0.2 | -0.12 | -0.12 |
| Over 1″ – 2-1/2″ | -0.1 | -0.04 | -0.06 | |
| Up to 1″ | -0.05 | -0.03 | -0.03 | |
| Over 2-1/2″ – 6″ | -0.14 | -0.06 | -0.08 |
Stockist and Exporter of SS 304 Socket Screws With UNC, UNF and Metric Coarse Threads at Lowest Price in Mumbai
To Know About Stainless Steel Socket Head Cap Screw Price Per Kg in India Please Contact Us SHCS Price List
Check Stainless Steel Alloys Socket Low Head Cap Screw Tensile Strength and Equivalent Properties
| SS SHCS Size | 1/4 | 4 | 2 | 8 | 6 | 10 | 5/16 | 3/8 | 01/2 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Tensile Load (Pounds Min.) | UNRC | 3,420 | 575 | 350 | 1,330 | 865 | 1,600 | 4,980 | 7,360 | 13,500 |
| UNRF | 3,460 | 630 | 375 | 1,440 | 965 | 1,990 | 5,570 | 8,340 | 15,200 | |
| Single Shear Strength Of Body | (Lbs. Min) | 2,200 | 440 | 260 | 950 | 670 | 1280 | 3,450 | 4,970 | 8,840 |
| Proof Load(Pounds Min.) | UNRC | 0.4D | 0.4D | 0.4D | 0.4D | 0.4D | 0.4D | 0.4D | 0.4D | 0.4D |
| Tightening Torque (Inch Lbs.) | UNRC | 95 | 6.8 | 3.8 | 28 | 15 | 40 | 170 | 301 | 750 |
| UNRF | 109 | 9 | 4 | 29 | 17 | 46 | 188 | 341 | 850 | |
| Yield Strength | (P.S.I. Min)* | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 | 30000 |
| Tensile Strength | (P.S.I. Min) | 95000 | 95000 | 95000 | 95000 | 95000 | 95000 | 95000 | 95000 | 95000 |
| Elongation Min | in 4D* | 10% | 10% | 10% | 10% | 10% | 10% | 10% | 10% | 10% |
| Hardness Scale | (Rockwell) | B80-C33 | B80-C33 | B80-C33 | B80-C33 | B80-C33 | B80-C33 | B80-C33 | B80-C33 | B80-C33 |
| Reduction of Area | % Min | 30% | ||||||||
| Standards | WNR. | UNS | BS | EN | AFNOR | JIS |
|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | BS 304S31 | X5CrNi 18-10 | Z2 CN 18-10 | |
| SS 316 | 1.4401 / 1.4436 | S31600 | 316S31 / 316S33 | X5CrNiMo17-12-2/X3CrNiMo17-13-3 | Z7CND17‐11‐02 | SUS 316 |
SS Fully Threaded Socket Head Cap Screws
SS 304 Flat Socket Head Cap Screw
Stainless Steel 304L Socket Cap Scre
Stainless Steel SHC
Dealer and Distributor of Austenitic Steel Socket Head Shoulder Screw as Per ISO, ASME and BS Standards, View Dimension Chart
| Nominal Size Thread Pitch | M48 × 5 | M2 × 0.4 | M30 × 3.5 | M2.5 × 0.45 | M3 × 0.5 | M5 × 0.8 | M4 × 0.7 | M6 × 1 | M8 × 1.25 | M12 × 1.75 | M10 × 1.5 | M14 × 2b | M16 × 2 | M24 × 3 | M20 × 2.5 | M36 × 4 | M1.6 × 0.35 | M42 × 4.5 | ||
| Body dia | D | Max | 48 | 2 | 30 | 2.5 | 3 | 5 | 4 | 6 | 8 | 12 | 10 | 14 | 16 | 24 | 20 | 36 | 1.6 | 42 |
| Min | 47.61 | 1.86 | 29.67 | 2.36 | 2.86 | 4.82 | 3.82 | 5.82 | 7.78 | 11.73 | 9.78 | 13.73 | 15.73 | 23.67 | 19.67 | 35.61 | 1.46 | 41.61 | ||
| Head height | H | Max | 48 | 2 | 30 | 2.5 | 3 | 5 | 4 | 6 | 8 | 12 | 10 | 14 | 16 | 24 | 20 | 36 | 1.6 | 42 |
| Min | 47.58 | 1.91 | 29.67 | 2.4 | 2.89 | 4.86 | 3.88 | 5.85 | 7.83 | 11.79 | 9.81 | 13.77 | 15.76 | 23.7 | 19.73 | 35.64 | 1.52 | 41.61 | ||
| Head dia | A | Max | 72 | 3.8 | 45 | 4.5 | 5.5 | 8.5 | 7 | 10 | 13 | 18 | 16 | 21 | 24 | 36 | 30 | 54 | 3 | 63 |
| Min | 71.27 | 3.65 | 44.42 | 4.33 | 5.32 | 8.27 | 6.8 | 9.74 | 12.7 | 17.63 | 15.67 | 20.6 | 23.58 | 35.48 | 29.53 | 53.37 | 2.87 | 62.31 | ||
| Hexagon Socket Size | J | Nom. | 36 | 1.5 | 22 | 2 | 2.5 | 4 | 3 | 5 | 6 | 10 | 8 | 12 | 14 | 19 | 17 | 27 | 1.5 | 32 |
| Chamfer or Radius | S | Max | 4.8 | 0.2 | 3 | 0.25 | 0.3 | 0.5 | 0.4 | 0.6 | 0.8 | 1.2 | 1 | 1.4 | 1.6 | 2.4 | 2 | 3.6 | 0.16 | 4.2 |
| Spline Socket Size | M | Nom. | … | 1.829 | … | 2.438 | 2.819 | 4.648 | 3.378 | 5.486 | 7.391 | … | … | … | … | … | … | … | 1.829 | … |
| Transition Dia. | B | Max | 2.6 | 33.4 | 3.1 | 3.6 | 5.7 | 4.7 | 6.8 | 9.2 | 14.2 | 11.2 | 16.2 | 18.2 | 26.4 | 22.4 | 39.4 | 2 | 45.6 | |
| Key Engagement | T | Min | 24 | 1 | 15 | 1.25 | 1.5 | 2.5 | 2 | 3 | 4 | 6 | 5 | 7 | 8 | 12 | 10 | 18 | 0.8 | 21 |
| Grades | A2 | A4 | A1 | A3 | F1 |
|---|---|---|---|---|---|
| AISI | 304 | 316 | 202 | 321 | 430 |
| C | 0.08 | 0.08 | 0.12 | 0.08 | 0.12 |
| Mn | 2 | 2 | 6.5 | 2 | 1 |
| Si | 1 | 1 | 1 | 1 | 1 |
| Cr | 15.0 – 20.0 | 16.0-18.5 | 0.2 | 19 | 15.0-18.0 |
| P | 0.05 | 0.045 | 160 – 19.0 | 0.05 | 0.04 |
| S | 0.03 | 0.03 | 0.15-0.35 | 0.03 | 0.03 |
| Mo | 0 | 2.00-3.00 | 0.7 | 0 | 0 |
| Ni | 8.0 – 19.0 | 10.0-15.0 | 5.0 – 10.0 | 9.0 – 12.0 | 1 |
| Country Name | Turkey | UAE | Qatar | Saudi Arabia | Oman | Jordan | South Africa | Egypt | Malaysia | Singapore | Thailand |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Shipping time | 21 Days | 5 Days | 8-10 Days | 8-10 Days | 7-8 Days | 21 Days | 25-30 Days | 11-13 Days | 8-10 Days | 8-10 Days | 7 Days |
| Stainless Steel Socket Head Cap Screw Supplier in India with Fastest Delivery | |||||||||||
