ASTM F468 UNS N56400 Bolts Manufacturer in India
Titanium Grade 5 Fasteners Overview
| Ready Stock: | M1.2 – M48 |
|---|---|
| Custom Sizes: | M4 – M16″ |
| Length: | 3 mm to 200 mm |
| International Standard: | DIN 933, DIN 931, DIN 970, DIN 934, ASME B18.5 |
| European and American Standard: | ASTM F468, ASME SF 468, WNR 3.7165, UNS N56400 |
| Raw Material Origin: | SA, Europe, New Zealand, South Africa, New Zealand, Algeria, United Kingdom, Morocco, Australia India etc |
| MTC: | EN 10204/3.1B |
| Suitable Environment: | Salt Water and Mild Acids |
| Thread Pitch: | Fine Thread and Coarse Thread |
| Finish: | Phosphating, HDG, Oxidation |
| Threads: | UNJ, Rolled, UNC, UNF, UNR |
| Temperature Range: | 400 degrees C |
| To Know About Latest Price List of Titanium Grade 5 Fasteners Please Contact Us | |
Grade 5 Titanium Alloy Bolts
ASME SF 468 Gr 5 Nuts
Cp Grade 5 Titanium Screw
Table of Content
- Titanium Grade 5 Fasteners Specification
- ASME SF 468 Gr 5 Nuts Size Chart
- Price List of Ti Gr 5 Fasteners
- Titanium Grade 5 Chemical Composition
- UNS N56400 Bolts Fatigue Strength
- 6al 4v Fasteners HS Code
- Cp Ti Grade 5 Hex Bolt Equivalent Grades
- ASME SF468 Gr 5 Stud Bolt Size Chart
- Types of ASTM F468 UNS N56400 Fasteners
- Ti 6Al-4V Hex Nuts Physical Properties
- 6al 4v Socket Head Cap Screw Dimensions Chart
- Titanium Grade 5 Fasteners Torque Chart
- Titanium Gr 5 Fasteners Weight Chart
Titanium Grade 5 Fasteners Specification
Titanium Grade 5 Fasteners Manufacturer in India Offer Detail Specification
Titanium Grade 5 Bolts Size
- M1.2 – M48
ASME SF 468 Gr 5 Nut Metric Size
- Size: M3 – M56
Ti-6Al-4V Washer Size
- M3 – M36
Grade 5 Titanium Alloy Bolts Thread Pitch
- Coarse
- Fine
Ti Gr 5 Hex Bolts Manufacturing Methods
- Hot Forging
- CNC Machined
- Cold Forging
6al 4v Socket Head Cap Screw Form
- D
- A
- E
- B
- G
- C
ASTM F468 N56400 Washer Melting Point
- 1604 – 1660 °C
Titanium Cp Grade 5 Threaded Rod ASTM Standards
- ASME SF 468
- ASTM F468
UNS N56400 Dowel Pin Hardness Range
- Hardness, Vickers – 349
- Hardness, Knoop – 363
- Hardness, Rockwell C – 36
CP Ti Grade 5 Flat Washer Surface Finish
- Oxidation, DACROMET
- Phosphating, Zinc impregnation
- Plain, Electric galvanized
Grade 5 Titanium Stud Bolt Machines
- Making Machines
- Thread Rolling
- CNC Lath
ASTM F468M Gr5 Studs Testing
- 100% Tested Titanium Grade 5 Fasteners with MTC EN 10204 3.1/3.2
Titanium Grade 5 Fasteners Thread Types
- BSF
- UNC
- UN8
- UNM
- UNR
- BSW
- UNF
- ACME
- UTS
Titanium 6Al-4V Fastener Types
- hex bolt
- bolt
- stud bolt
- nuts
- threaded rod
- screws
- washers
ASTM F468 UNS N56400 Washer Value Added Services
- Bagging
- Head Shank Drilling
- Thread Locking
- Head Painting
Titanium 6Al-4V Screws Drive Style
- Oval
- Hexagon washer
- Pan
- Cross
- Hex
- Round
- Torx
- Truss
Ti gr 5 Bolt Head Types
- Truss
- Flat
- Phillips Drive
- Socket cap head
- Button head
- Slotted Drive
- Oval
- Combination Drive
- Hex head
- Slotted hex washer
- Pan
- Frearson Drive
- Hex washer head
Ti Gr 5 Hex Bolts Class
- 5 CSF
- Class 2A (Medium fit)
- 2G
- custom
- 5 HF
- 5 ONF
- 6G
- 3G
- Class 3A (Tight fit)
- 4G
- 8G
- Class 1A (Loose fit)
Supplier of Ti-6Al-4V Hex Bolt and Nuts in Custom Size With MTC EN 10204 3.1 / 3.2
ASME SF 468 Gr 5 Nuts Size Chart
| Size | 0 | 2 | 4 | 3 | 6 | 01/4 | 8 | 1 | 10 | 12 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dia | Hex Nut | – | – | – | – | – | 7/16 | – | – | – | – |
| Machine Screw Nut | 5/32 | 3/16 | 01/4 | 3/16 | 5/16 | 7/16 | 11/32 | 5/32 | 03/8 | 7/16 | |
| Height | Hex Nut | – | – | – | – | – | 7/32 | – | – | – | – |
| Jam Nut | – | – | – | – | – | 5/32 | – | – | – | – | |
| Nylock Nut | – | 9/64 | 9/64 | 9/64 | 11/64 | 5/16 | 15/64 | – | 15/64 | 5/16 | |
| Machine Screw Nut | 3/64 | 1/16 | 3/32 | 1/16 | 7/64 | 3/16 | 01/8 | 3/64 | 01/8 | 5/32 | |
| Size | 5/16 | 7/16 | 9/16 | 01/2 | 05/8 | 1 | 03/4 | 03/8 | 07/8 | ||
| Dia | Hex Nut | 01/2 | 11/16 | 07/8 | 03/4 | 15/16 | 01-01/2 | 01-01/8 | 9/16 | 01-05/16 | |
| Machine Screw Nut | 9/16 | – | – | – | – | – | – | 05/8 | – | ||
| Height | Hex Nut | 17/64 | 03/8 | 31/64 | 7/16 | 35/64 | 55/64 | 41/64 | 21/64 | 03/4 | |
| Jam Nut | 3/16 | 01/4 | 5/16 | 5/16 | 03/8 | 35/64 | 27/64 | 7/32 | 31/64 | ||
| Nylock Nut | 11/32 | 29/64 | 41/64 | 19/32 | 03/4 | 01-03/64 | 07/8 | 29/64 | 63/64 | ||
| Machine Screw Nut | 7/32 | – | – | – | – | – | – | 01/4 | – | ||
| Most Economical Titanium Grade 5 Fasteners Manufacturer in India | |||||||||||
Exporter of Ti Gr 5 Stud Bolt and Threaded Rod in Accordance With ASME B18.31.2 Standards at Factory Price in Mumbai
Price List of Ti Gr 5 Fasteners
To Know About Titanium Grade 5 Fasteners Price Per Kg in India Please Contact Us Titanium Grade 5 Fasteners Price List
Check ASME SF 468 Gr 5 Screws Strength and Chemical Composition
Titanium Grade 5 Chemical Composition
| Titanium Gr 5 | H | C | Al | Ti | N | V | O | Fe |
|---|---|---|---|---|---|---|---|---|
| 0.015 max | 0.10 max | 5.5-6.75 max | 90 min | 0.05 max | 3.5-4.5 | 0.20 max | 0.40 max |
UNS N56400 Bolts Fatigue Strength
| Properties | Fatigue Strength min | Fatigue Strength max |
|---|---|---|
| English | 23200 psi | 102000 psi |
| Metric | 160 MPa | 700 MPa |
Refer DIN 3.7165 Washers Sizes, Equivalent Grades and HS Code
6al 4v Fasteners HS Code
| Grade | Ti Gr 5 |
|---|---|
| HS code | 81089090 |
Cp Ti Grade 5 Hex Bolt Equivalent Grades
Titanium Grade 5 Fasteners Manufacturer in India Who Provide Various Grades
| Standards | UNS | WNR | ASTM | JIS | ASME | BS | GOST |
|---|---|---|---|---|---|---|---|
| Country | North America | Russia | America | Japan | Australia | United Kingdom | Russia |
| Titanium gr 5 | R56400 | 3.7165 | B348 | – | SB348 | – | – |
| Standards | AFNOR | EN | AMS | SAE | ANSI | AS | DIN |
| Country | France | Europe | United States | United States | America | Australia | German |
| Titanium gr 5 | – | – | 4928 / 4911 | – | – | – | 3.7165 |
ASME SF468 Gr 5 Stud Bolt Size Chart
Titanium Grade 5 Fasteners Supplier in India who Provides Wide Range Of Sizes
| Nominal size (D) | Body diameter | Across the flats | Head thickness | Across corners | ||||
|---|---|---|---|---|---|---|---|---|
| D (max) | D (min) | F (max) | F (min) | H (max) | H (min) | C (max) | C (min) | |
| m10 | 10 | 9.78 | 17 | 15.73 | 6.63 | 6.17 | 18.48 | 17.77 |
| m14 | 14 | 13.73 | 22 | 20.67 | 9.09 | 8.51 | 24.25 | 23.35 |
| m12 | 12 | 11.73 | 19 | 17.73 | 7.76 | 4.24 | 20.78 | 20.03 |
| m16 | 16 | 15.73 | 24 | 23.67 | 10.32 | 9.68 | 27.71 | 26.75 |
| m24 | 24 | 23.67 | 36 | 35 | 15.44 | 14.56 | 41.57 | 39.55 |
| m20 | 20 | 19.67 | 30 | 29.16 | 12.88 | 12.12 | 34.64 | 32.95 |
| m30 | 30 | 29.67 | 46 | 45 | 19.48 | 17.92 | 53.12 | 50.85 |
| m42 | 42 | 41.38 | 65 | 62.9 | 26.97 | 25.03 | 75.06 | 71.71 |
| m36 | 36 | 35.61 | 55 | 53.8 | 23.38 | 21.63 | 63.51 | 60.79 |
| m48 | 48 | 47.38 | 75 | 72.6 | 31.07 | 28.93 | 86.6 | 82.76 |
Types of ASTM F468 UNS N56400 Fasteners
Titanium Grade 5 Fasteners Supplier in India Offering a Various Types
Grade 5 Titanium Stud Bolt
ASTM F468 UNS N56400 Washer
Titanium Cp Grade 5 Threaded Rod

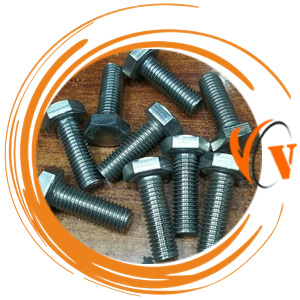

Ti Gr 5 Hex Bolts
Titanium Gr 5 Heavy Hex Bolt
Ti 6al 4v Hex Nuts
WNR 3 7165 Heavy Hex Nuts
6al 4v Socket Head Cap Screw
ASME Sf468 Gr 5 Dowel PIN
Ti 6Al-4V Hex Nuts Physical Properties
| Property | Value |
|---|---|
| Poisson’s Ratio | 0.34 |
| Young’s Modulus | 113.8 GPa (Ti-6Al-4V) |
| Electrical Resistivity | 4.2*10⁻⁶ Ω·m. |
| Specific Heat | 0.526 J/g·°C |
| Thermal Conductivity | 8.6*10⁻⁶/°C |
| Density | 4.43 g/cc |
6al 4v Socket Head Cap Screw Dimensions Chart
| Nominal | Body diameter and Head height | Hex Socket Size | Thread. | Soc. length | Head Dia | ||
|---|---|---|---|---|---|---|---|
| Size | Max | Min | Pitch | Max | Min | ||
| D /H | J | K | A | ||||
| M6 | 6.00 | 5.82 | 5.00 | 1.0 | 3.30 | 10.00 | 9.64 |
| M24 | 24.00 | 23.67 | 19.00 | 3.0 | 12.90 | 36.00 | 35.38 |
| M8 | 8.00 | 7.78 | 6.00 | 1.25 | 4.3 | 13.00 | 12.57 |
| M12 | 12.00 | 11.73 | 10.00 | 1.75 | 6.60 | 18.00 | 17.57 |
| M5 | 5.00 | 4.82 | 4.00 | 0.8 | 2.70 | 8.50 | 8.14 |
| M4 | 4.00 | 3.82 | 3.00 | 0.70 | 2.00 | 7.00 | 6.64 |
| M10 | 10.00 | 9.78 | 8.00 | 1.5 | 5.50 | 16.00 | 15.57 |
| M20 | 20.00 | 19.67 | 17.00 | 2.5 | 10.70 | 30.00 | 29.48 |
| M3 | 3.00 | 2.86 | 2.50 | 0.5 | 1.3 | 5.50 | 5.20 |
| M16 | 16.00 | 15.73 | 14.00 | 2.0 | 8.80 | 24.00 | 23.48 |
Titanium Grade 5 Fasteners Torque Chart
| Max Titanium Grade 5 Fasteners Torque – in Nm | ||||||||
|---|---|---|---|---|---|---|---|---|
| Thread Diameters | 3 (mm) | 4 (mm) | 5 (mm) | 6 (mm) | 8 (mm) | 10 (mm) | 12 (mm) | 14 (mm) |
| Titanium Grade 5 Dome Head / Fairing Bolt | – | 3.50 | 5.00 | 11.00 | 16.00 | 26.00 | – | – |
| Titanium Grade 5 Flanged Hex Head Bolt | 2.00 | 5.00 | 12.00 | 15.00 | 35.00 | 38.00 | 97.50 | 155.20 |
| Titanium Grade 5 Socket Cap Bolt | 1.73 | 4.00 | 10.00 | 14.00 | 25.00 | 38.00 | – | – |
| Titanium Grade 5 Countersunk Bolt | – | 3.50 | 5.00 | 8.00 | 15.00 | 20.00 | – | – |
Titanium Gr 5 Fasteners Weight Chart
| Size | Finished Hex | Finished Jam | Heavy Hex Jam | Heavy Hex | Square | Heavy Square | |
|---|---|---|---|---|---|---|---|
| 31/2″ Nut | 851 | 1526 | |||||
| 31/4″ Nut | 651 | 1194 | |||||
| 23/4″ Nut | 429 | 738 | |||||
| 21/2″ Nut | 332 | 564 | |||||
| 11/2″ Nut | 94.3 | 60.9 | 74.8 | 131 | 122 | 161 | |
| 13/8″ Nut | 73.0 | 47.9 | 59.3 | 102 | 94.5 | 125.0 | |
| 3/4″ Nut | 11.9 | 7.70 | 11.0 | 19.3 | 15.4 | 23.5 | |
| 5/8″ Nut | 7.33 | 4.93 | 6.96 | 11.9 | 10.8 | 14.3 | |
| 17/8″ Nut | 134 | 241 | |||||
| 13/4″ Nut | 151 | 100 | 114 | 204 | |||
| 11/4″ Nut | 54.3 | 36.1 | 45.8 | 78.6 | 70.6 | 95.5 | |
| 7/8″ Nut | 19.0 | 12.0 | 16.7 | 29.7 | 24.5 | 36.2 | |
| 11/8″ Nut | 40.3 | 24.7 | 32.4 | 59.2 | 52.5 | 72.4 | |
| 1/2″ Nut | 3.75 | 2.62 | 4.00 | 6.54 | 5.78 | 7.87 | |
| 15/8″ Nut | 91.6 | 162 | |||||
| 1″ Nut | 28.3 | 17.6 | 23.5 | 42.5 | 36.3 | 51.5 | |
| 21/4″ Nut | 227 | 419 | |||||
| 2″ Nut | 224 | 140 | 165 | 299 | |||
| 33/4″ Nut | 1005 | 1812 | |||||
| 3″ Nut | 545 | 950 | |||||
| 4″ Nut | 1200 | 2180 | |||||
